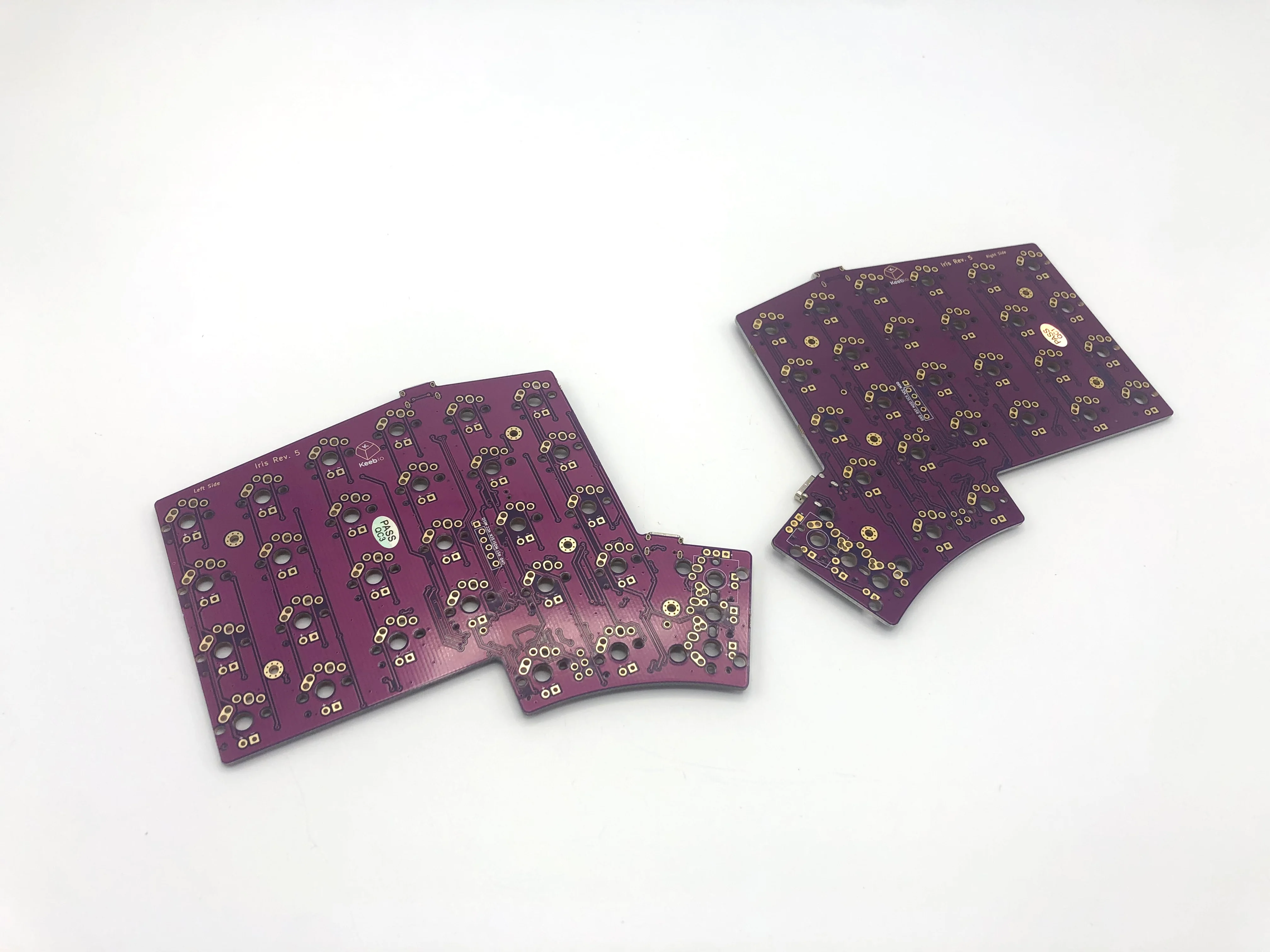

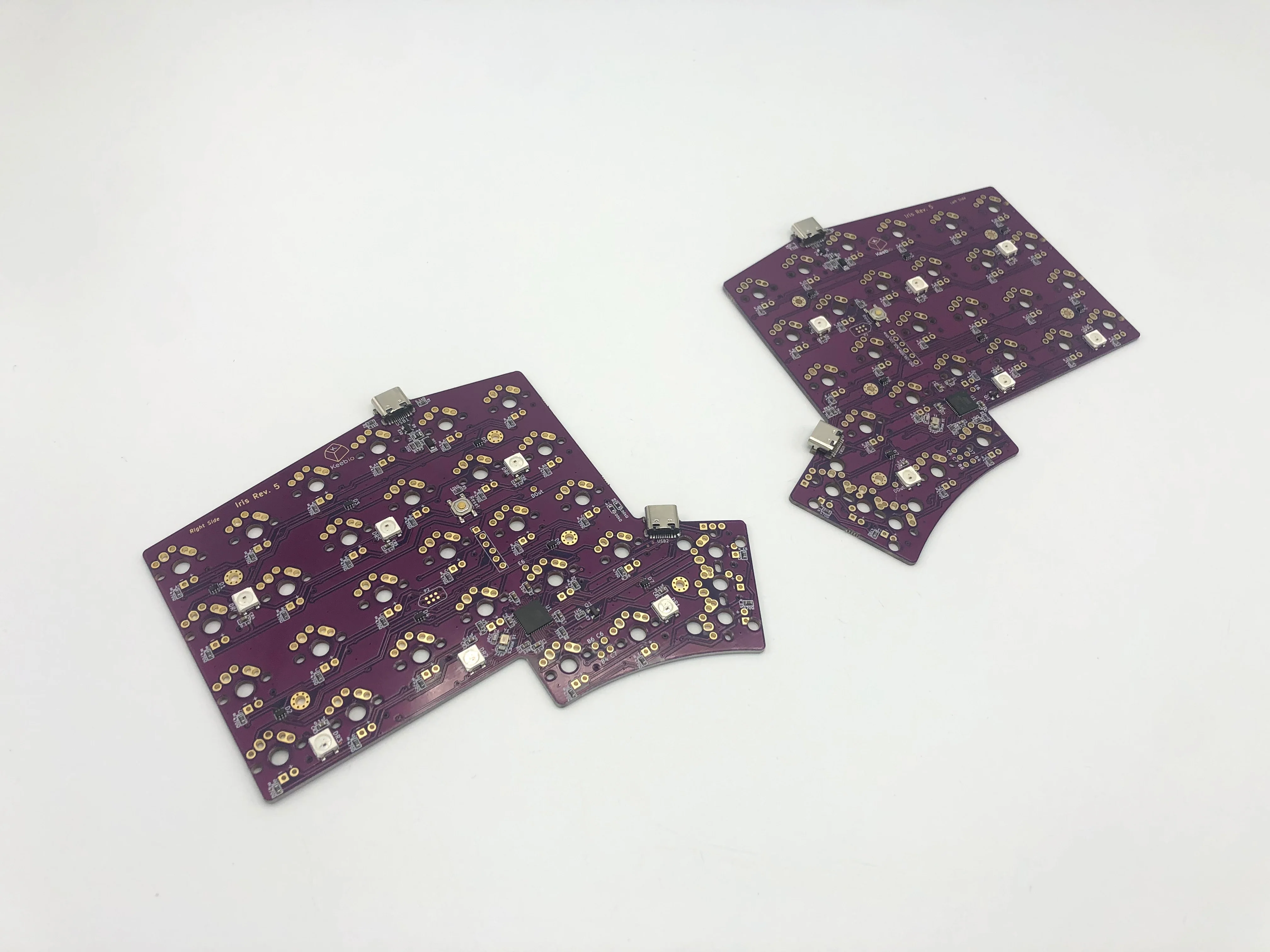

Iris Rev. 5 Keyboard - PCBs for Split Ergonomic Keyboard
The Iris keyboard, a split ergonomic keyboard with 4x6 vertically staggered keys and 3 or 4 thumb keys. Time to stop stretching your thumbs out on the Ergodox!
Don't want to solder it yourself? Check out our pre-built option here and our hotswap Rev. 8 PCB here!
Layout

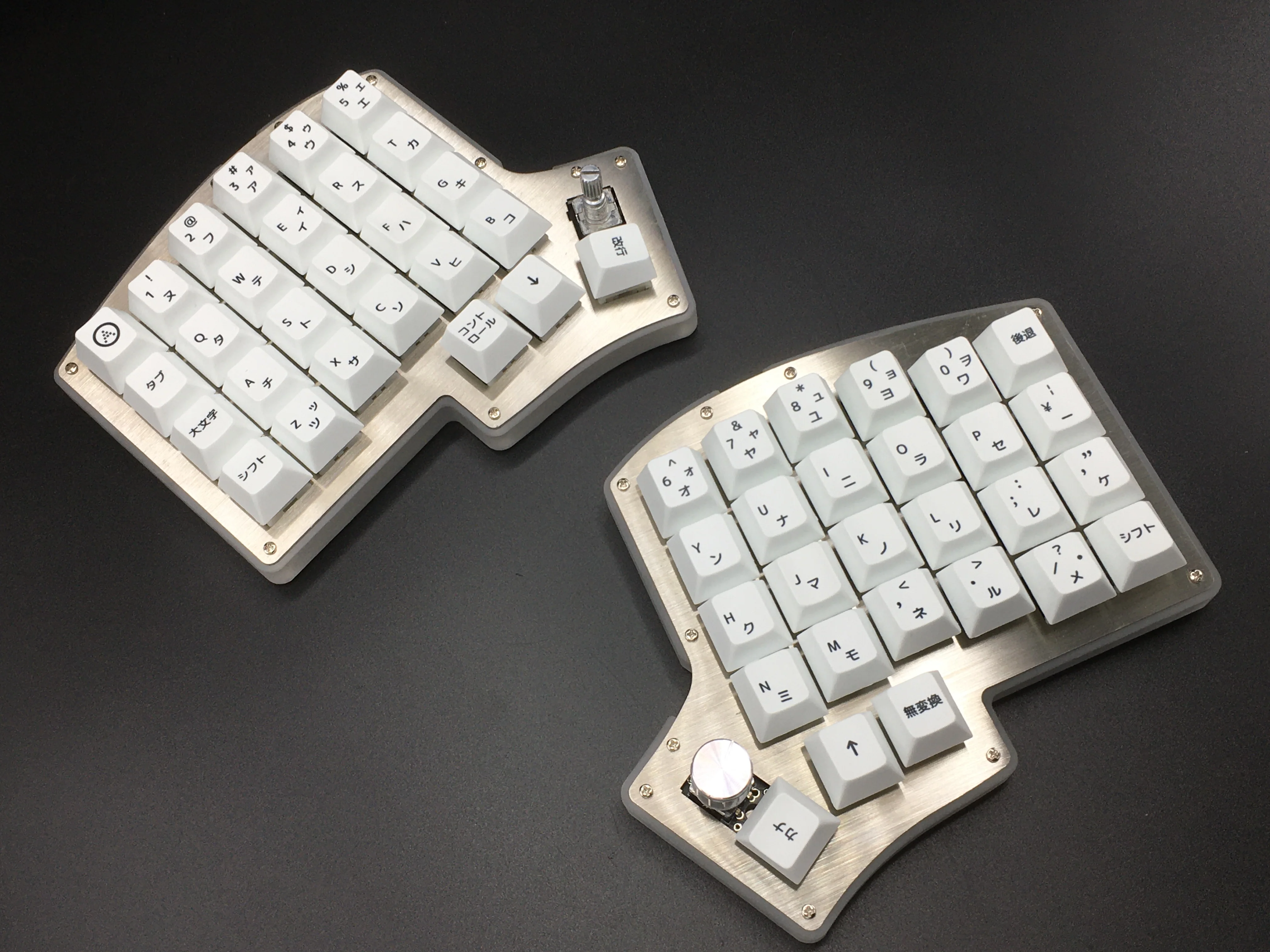

Each half of the board is a 4x6 matrix with the same vertical stagger as the Ergodox and with 3-4 thumb keys. TheĀ 2u thumb key can be replaced with 2 1u keys.Ā The spot for the 2u has holes for Cherry PCB mounted stabilizers. Alternatively, a rotary encoder can be placed at the upper thumb key of each half.
Many thanks to Lewis Ridden (/u/GAMING_FACE) for coming up with this design.
Original: $59.99
-65%$59.99
$21.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Iris keyboard, a split ergonomic keyboard with 4x6 vertically staggered keys and 3 or 4 thumb keys. Time to stop stretching your thumbs out on the Ergodox!
Don't want to solder it yourself? Check out our pre-built option here and our hotswap Rev. 8 PCB here!
Layout
Each half of the board is a 4x6 matrix with the same vertical stagger as the Ergodox and with 3-4 thumb keys. TheĀ 2u thumb key can be replaced with 2 1u keys.Ā The spot for the 2u has holes for Cherry PCB mounted stabilizers. Alternatively, a rotary encoder can be placed at the upper thumb key of each half.
Many thanks to Lewis Ridden (/u/GAMING_FACE) for coming up with this design.
