Laplace - 40% Staggered Keyboard

Not into the ortho or split life, but still want a compact keyboard? No worries, we got you covered with the Laplace, a 13u wide, 4 row keyboard.

Note: This product has been discontinued here, but is available at SpaceCat Design.

Features:

• MX/Alps compatibility

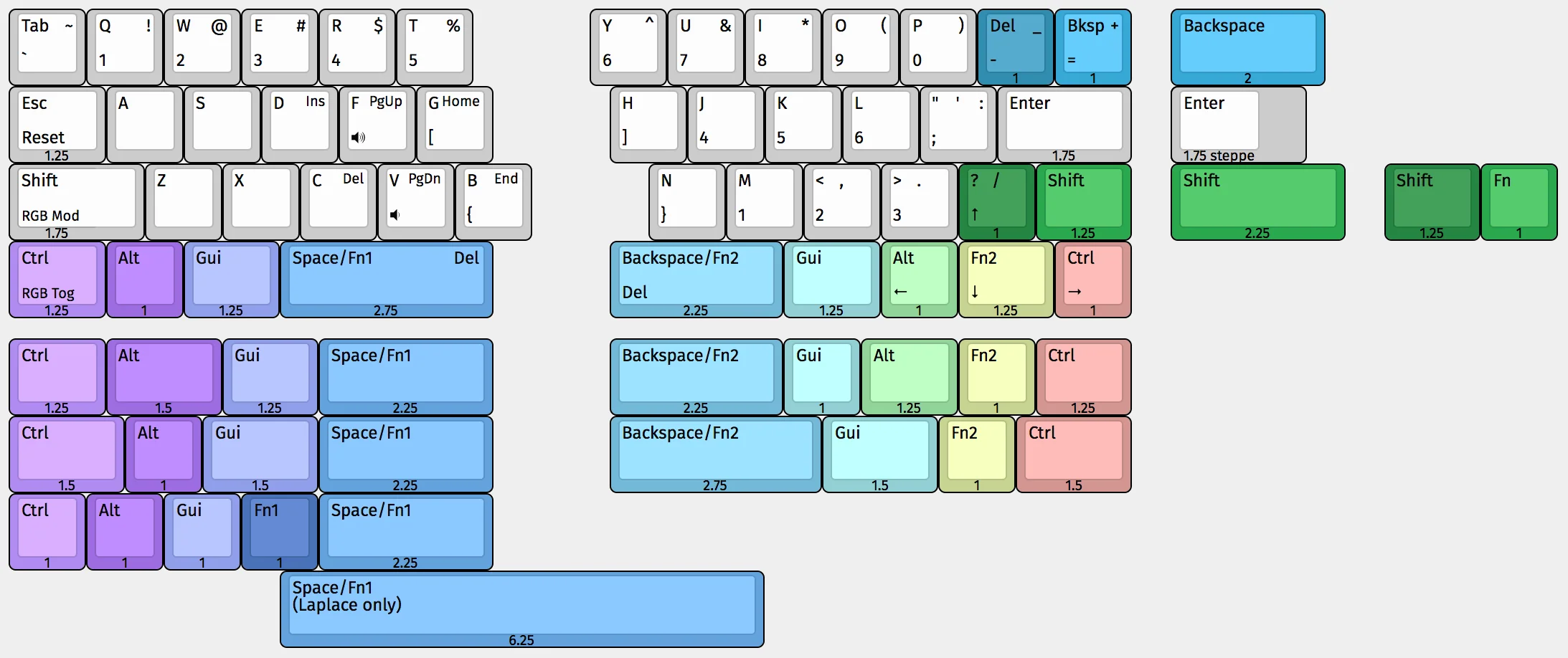

• Multiple layout options

Full PCB & Case Kit includes:

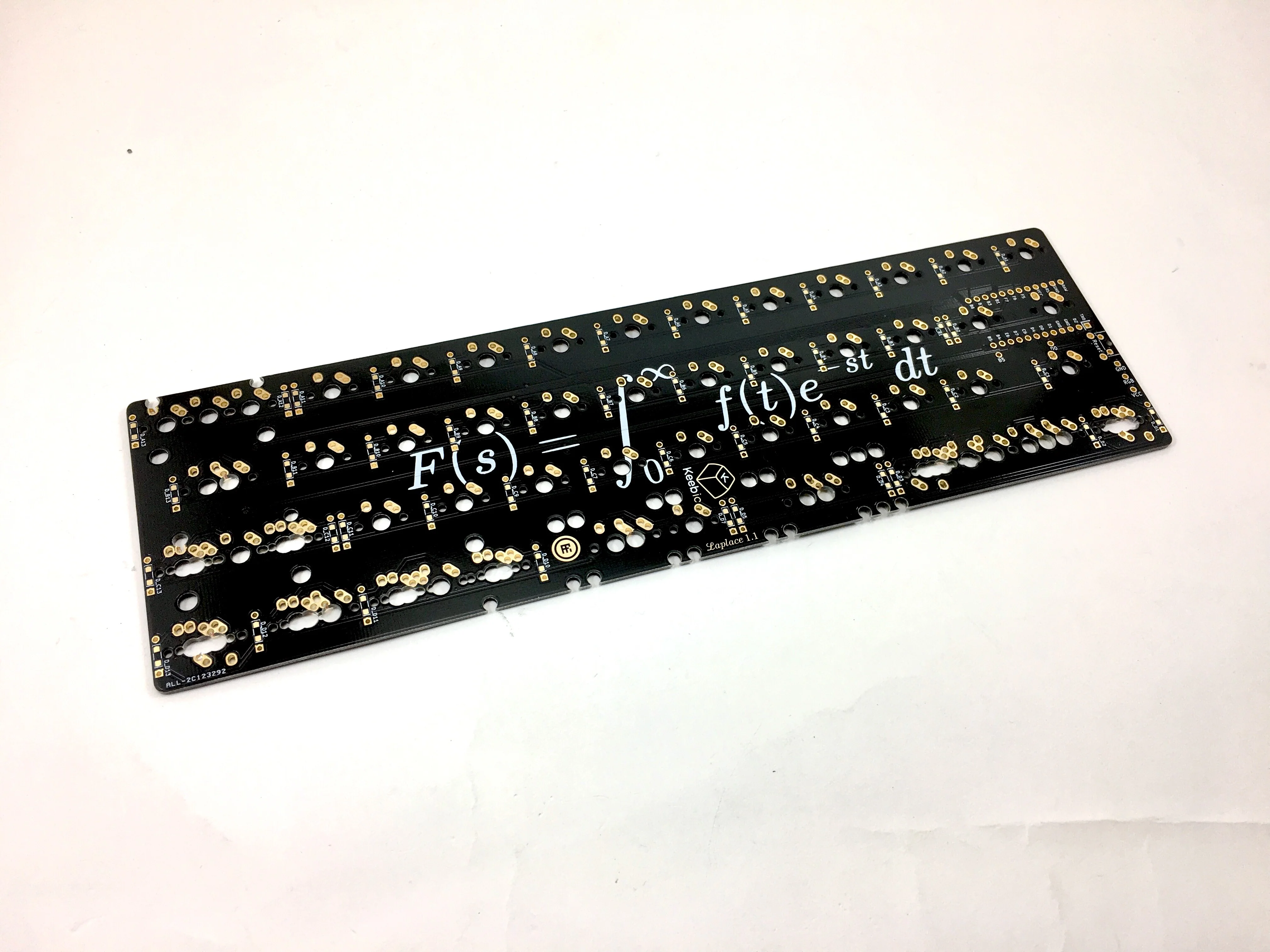

• Laplace PCB
• 47 1N4148 diodes
• 1 reset switch

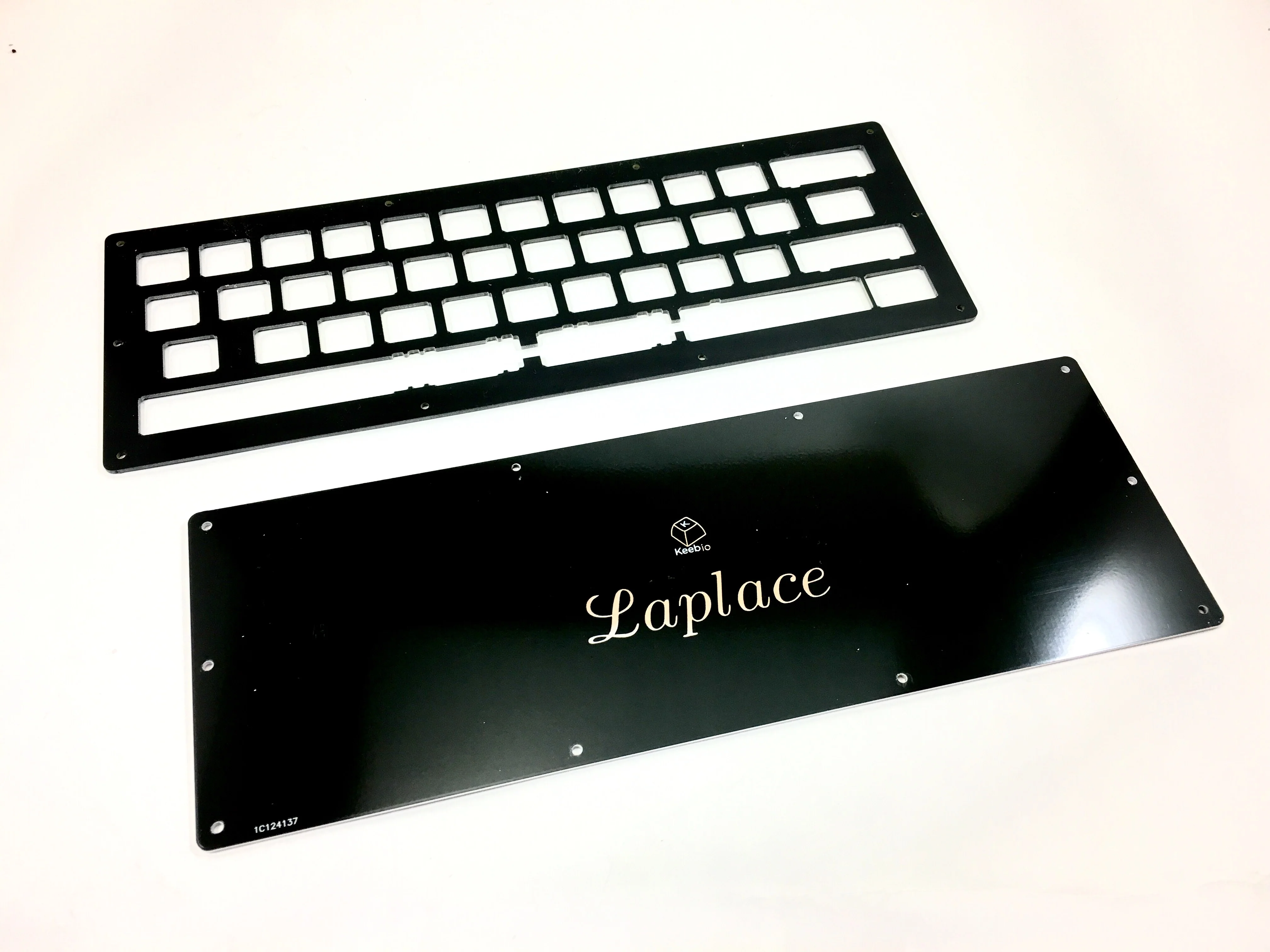

• Switch plate made of black FR-4 PCB material
• Bottom plate made of aluminum PCB
• 10 10mm M2 standoffs
• 20 6mm M2 screws

Other parts needed that are not included:

• MX or Alps compatible switches
• 1 Arduino Pro Micro
• Micro USB cable
• PCB-mount MX stabilizers (up to 4 needed)

Build Guide: Laplace Build Guide

Case Design: To be posted soon, along with model for middle layer for 3D printing
