Peel-A-Way Sockets for Pro Micros
Tried of desoldering Pro Micros because you've broken off the Micro-USB port? Time to socket your Pro Micros! These Peel-A-Way sockets are very low-profile, so it doesn't very much addition height to your builds.
Usage:

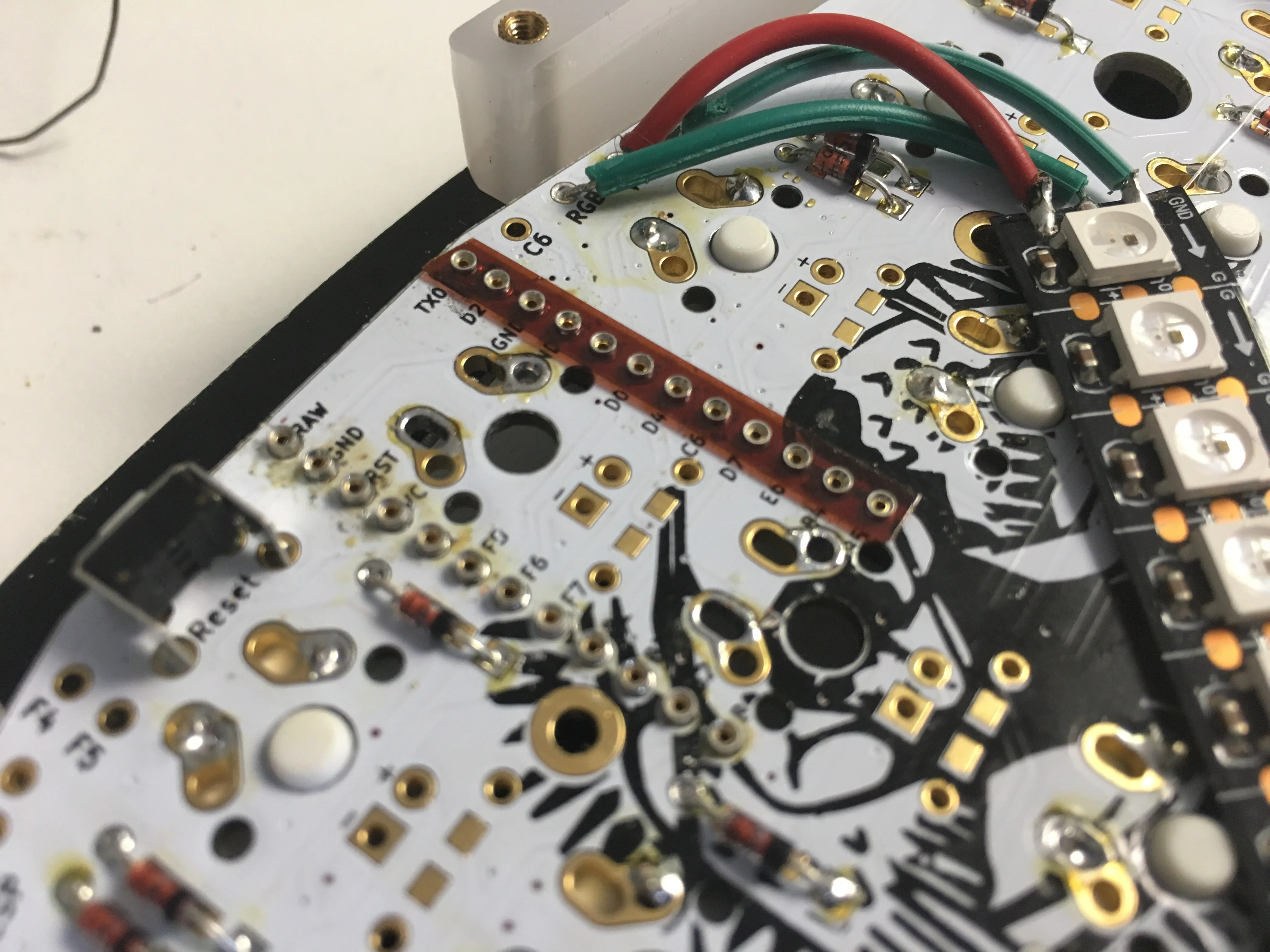

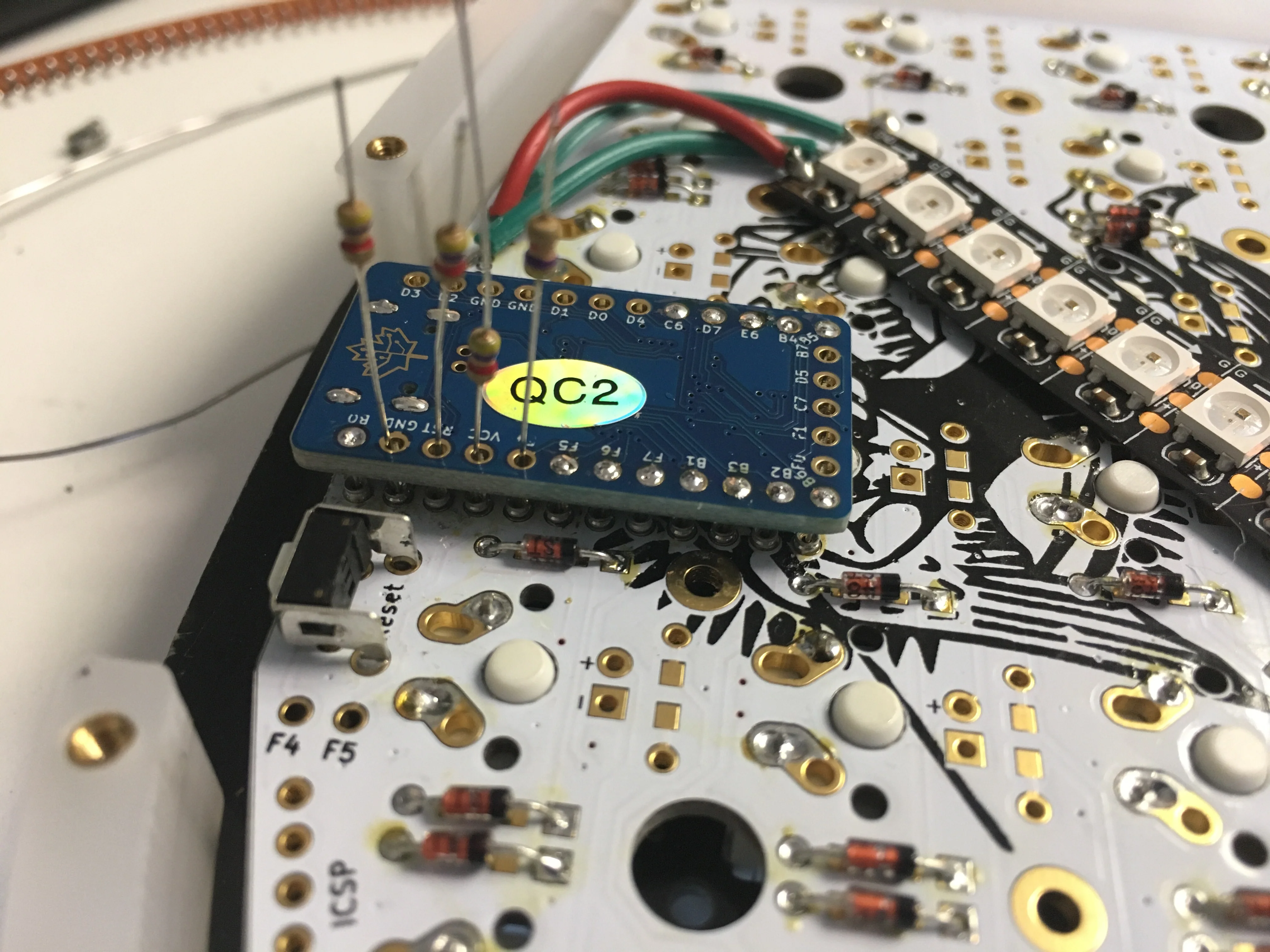

Instead of using the header pins that come with the Pro Micro, solder two strips of 12 pins in the Pro Micro slot. Next, align the Pro Micro over the sockets and insert leftover diode or resistor legs through the Pro Micro pads and into the sockets firmly. Lastly, solder the legs to the Pro Micro and clip the excess length.
Peel-A-WayĀ®Ā is a registered trademark of Advanced Interconnections Corp., West Warwick, RI USA. Keebio is not associated with and is not an authorized distributor or reseller of Advanced Interconnections Corp.
Original: $11.99
-65%$11.99
$4.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Tried of desoldering Pro Micros because you've broken off the Micro-USB port? Time to socket your Pro Micros! These Peel-A-Way sockets are very low-profile, so it doesn't very much addition height to your builds.
Usage:
Instead of using the header pins that come with the Pro Micro, solder two strips of 12 pins in the Pro Micro slot. Next, align the Pro Micro over the sockets and insert leftover diode or resistor legs through the Pro Micro pads and into the sockets firmly. Lastly, solder the legs to the Pro Micro and clip the excess length.
Peel-A-WayĀ®Ā is a registered trademark of Advanced Interconnections Corp., West Warwick, RI USA. Keebio is not associated with and is not an authorized distributor or reseller of Advanced Interconnections Corp.
